Model:：TR1300S
Descriptions

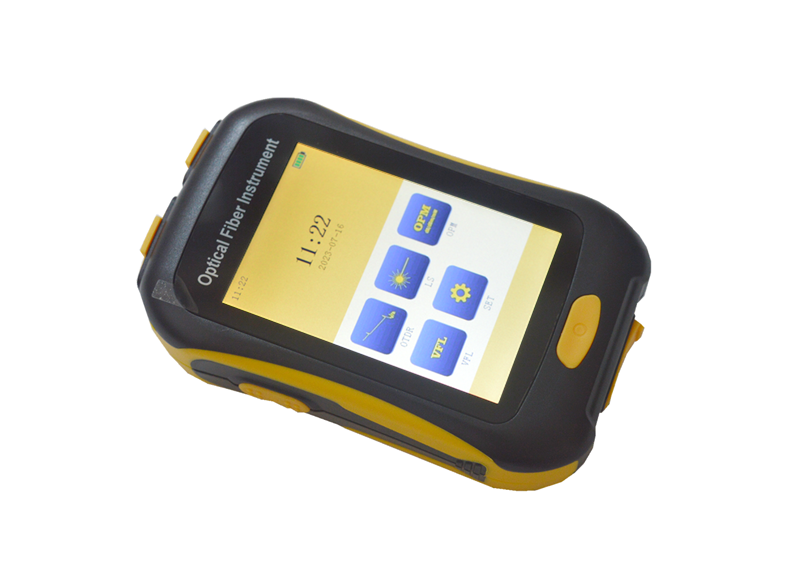

The TR1300S mini OTDR is compact and easy to carry. It adopts a 3.5 inches high-definition touch screen, supports multi-touch and smooth operation, integrates OTDR, optical power meter, light source and visual fault locator in one unit, to meet various test needs in different occasions. The OTDR function adopts 1550nm wavelength and is built in high-efficiency wavelength isolator. It can perform optical live test on 1490 and 1577nm optical links, which supports up to about ±10dB optical live test. Its maximum measurement range is 60km.
The TR1300S is used to measure optical fiber’s length, loss, connection quality and other parameters. It can easily test the breaking point, bend and loss point of the optical fiber links. It is suitable for maintenance personnel to have optical line maintenance and emergency repair testing.
Characteristics
3.5-inch multi-touch capacitive screen
Small and beautiful appearance, easy to carry

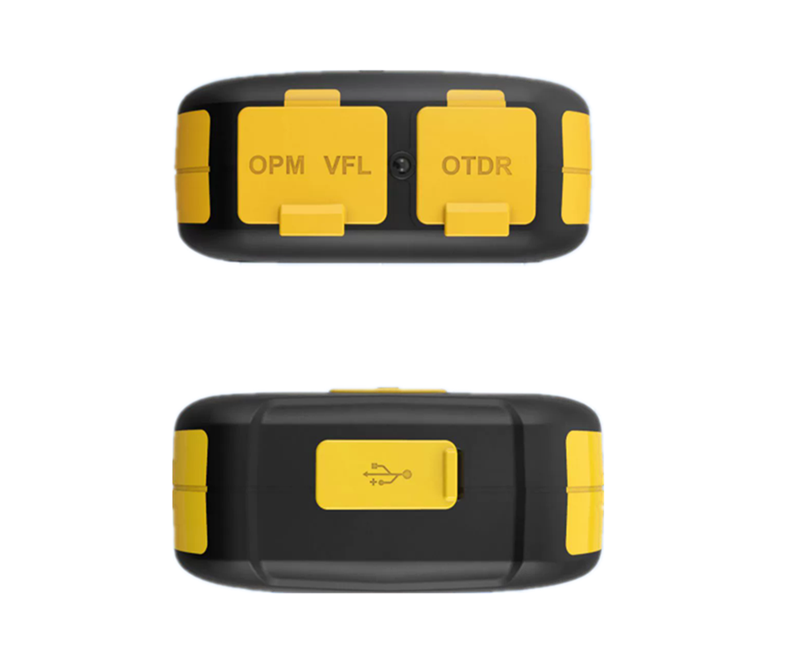

Intelligent multi-function, 6-in-one functional module: OTDR, optical power meter, light source, visual fault locator and flashlight

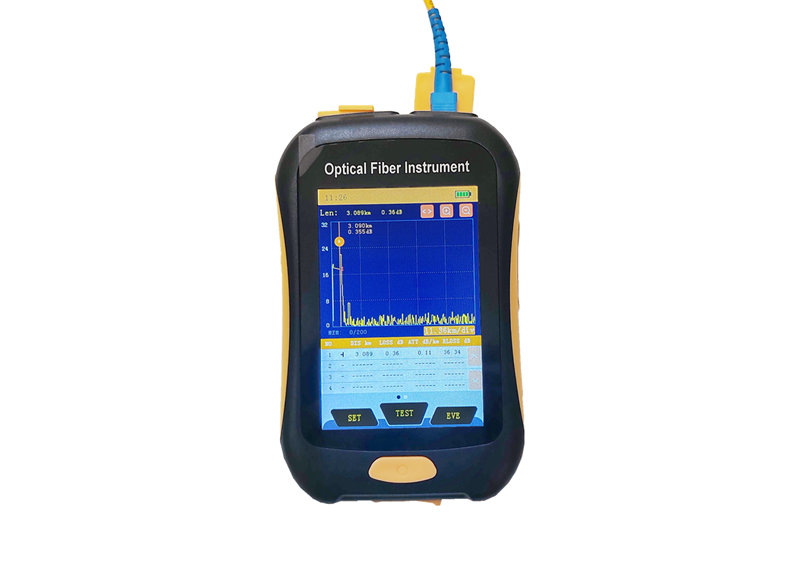

Automatic OTDR, no complicated settings, one-key test
On-live optical link test
Support automatic saving, SOR file format
Technical Specifications
|
Model |
TR1300S |
|
Wavelength |
1550nm±20nm |
|
Type |
G.652 SM |
|
Live Test |
Yes |
|
Dynamic Range |
20dB |
|
Event Blind Zone |
5m |
|
ATT Blind Zone |
15m |
|
Test Range |
200m, 500m, 1km, 2km, 4km, 8km, 16km, 32km, 40km, 60km |
|
Pulse Width |
10ns~8us |
|
Loss Resolution |
0.01dB |
|
Sample Points |
4K |
|
Laser Safety Level |
Class Ⅱ |
|
File Format |
SOR Standard file format |
|
Data Storage |
200 pieces |
|
Connector |
SC/UPC |
|
Optical Power Meter |
|
|
Wave Range |
850/980/1300/1310/1490/1550/1625/1650nm |
|
Interface Type |
Universal connector FC/SC/ST |
|
Test Range |
-70dBm～+6dBm(optional) -50dBm～+26dBm(standard) |
|
Uncertainty |
±5% |
|
Frequency Identification |
CW/270/330/1k/2kHz |
|
Optical Light Source |
|
|
LD Type |
FP-LD |
|
Wavelength |
Consistent with OTDR output wavelength |
|
Output Power |
≥-5dBm |
|
Output Mode |
CW/270Hz/330Hz/1kHz/2kHz |
|
Connector |
OTDR ports |
|
Visual Fault Locator(VFL) |
|
|
Wavelength |
650nm±20nm |
|
Output Power |
≥10mW |
|
Mode |
CW/1Hz/2Hz |
|
Connector |
Universal connector FC/SC/ST |
|
General Specifications |
|
|
Display |
Touch Screen, 3.5 Inches 320*480 color LCD |
|
Data Interface |
Type-C |
|
Power Supply |
Polymer Li-Battery: 3.7V, 2200mAh, Adapter: 5V DC, 2A |
|
Battery Working |
Standby＞6h; Measuring time＞4h |
|
Operating Temperature |
-10℃～+50℃ |
|
Storage Temperature |
-40℃～+70℃ |
|
Relative Humidity |
0～95％Non Condensing |
|
Weight |
≤200g(including battery) |
|
Size |
126mm×80mm×37mm |
|
The standard configuration: OTDR, Event Map, OPM, VFL, LS, Flashlight |
|
Configuration List
|
NO. |
NAME |
QUANTITY |
Remarks |
|
1 |
Host |
1 |
Battery included |
|
2 |
Adapter |
1 |
|
|
3 |
Data Line |
1 |
|
|
4 |
CD-ROM(Analysis software/User’s Manual) |
1 |
|
|
5 |
User’s Manual |
1 |
|
|
6 |
SC/UPC |
1 |
|
|
7 |
Qualification Certificate/ Service Guarantee Card |
1 |
|
|
8 |
Calibration Certificate |
1 |
|
|
9 |
Cleaning Pads |
10 |
|
|
10 |
Special Instrument Package |
1 |
|
