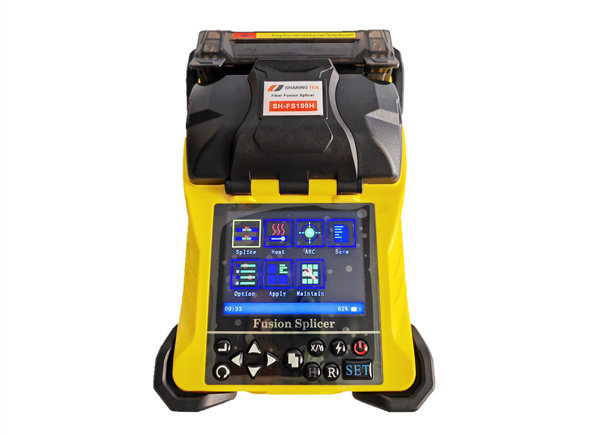

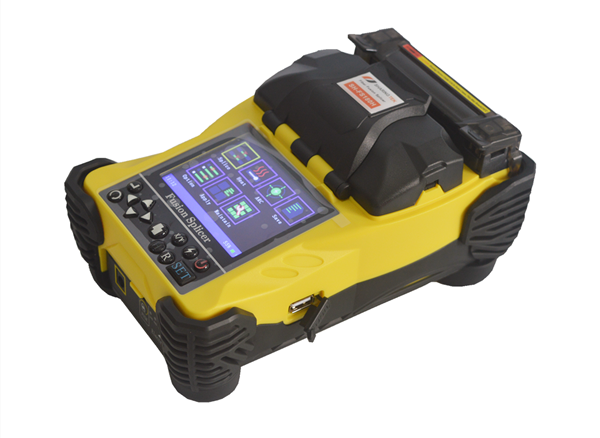

SH-FS180H Optical Fiber Fusion Splicer

Item

SH-FS180H Fusion Splicer

Applicable Fiber Type

SM,MM,DS,NZDS

Applicable Fiber Count

Single

Applicable Fiber Diameter

Cladding diameter: 80~150um, coating diameter 100 ~ 1000umm

Splice Mode

Stored 40 groups, 80 groups of user-defined

Average Splice Loss

0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)

Return Loss

More than 60dB

Typical Splicing Time

9 sec(Typical time)

Typical Heating Time

26s( configurable heating time and adjustable heating time)

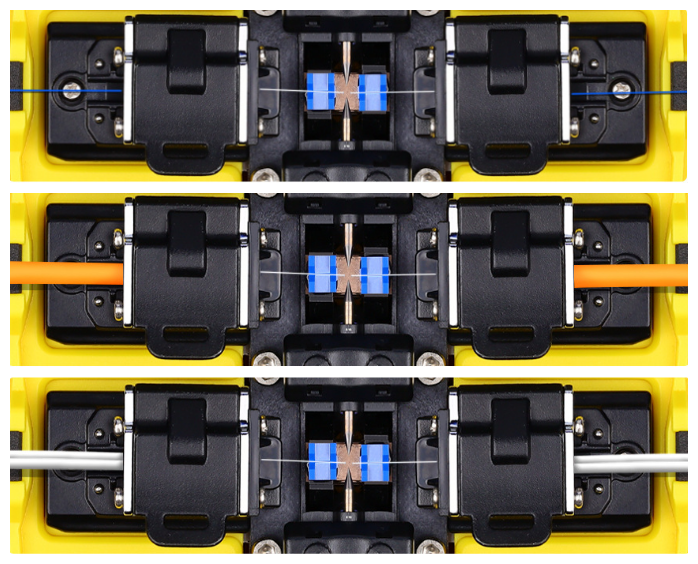

Fiber Holder

Multifunctional fiber holder(bare fiber, patch cords, pigtail and indoor cable)

Tensile test

2N

Screen

3.5 in. color LCD

Splicing Mode

17 groups

Heating Mode

9 groups

Optical Magnification

X, or Y: 400 times

Power Supply

11.1V lithium battery, 13.5V/5A power adapter, 12V vehicle power supply

Battery

Typical Operating 200 (splice / heat shrink)

Maximum storage

 5000 sets of the latest record storage

Power Saving

15% of the power of the lithium battery can be saved in a typical environment

Data interface

USB2.0

Operating environment

Altitude 0 ~ 4000m, 0 to 95% relative humidity, temperature -10 ~ 50degree, the maximum wind speed 15m/s

Storage Conditions

0 to 95% relative humidity, -40 ~ 80°C (except battery), -10 ~ 30°C (battery)

Weight

1.21kg (without battery), 1.5kg (including battery), including attachments packing gross weight: 5.1Kg

Size

214*136*110mm (fusion splicer) 330*183*214mm(plastic box)

Lighting

Convenient for the fiber installation in the evening

Packing

New waterproof, drop, more than can be heavy 300KG

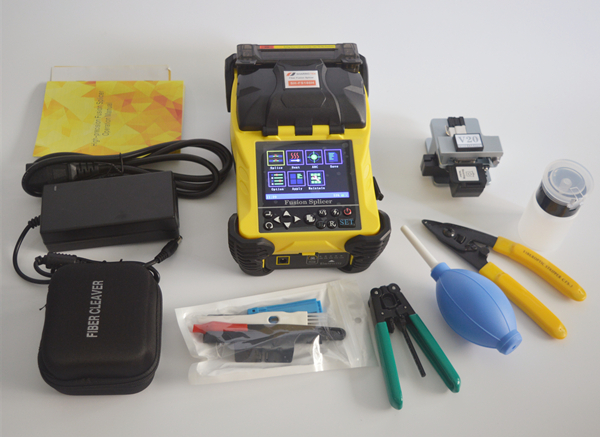

Main Unit

1pcs

Fiber Cleaver

1pcs

Indoor Cable Stripper

1pcs

CFS-3 Fiber Stripper

1pcs

Spare Electrodes

1 pair

Brush

1 pcs

Cooler

1pcs

Tweezers

1pcs

Hanging Fiber Reel

1pcs

Alcohol Bottle

1pcs

Fiber Holders

Universal Fiber Holders (bare fiber, patch cords, pigtail, indoor cable)

Carrying Suitcase

1pcs

AC Adaptor

1pcs

Blower (dustproof)

1pcs

Manual

1pcs

Warranty/Certificate/List

1pcs
