Model:：SH-CK3500
Overview
SH-CK3500 Fiber Optic Inspection & Cleaning Kit provides a selection of fiber optic cleaning products for use on fusion splice prep connector endface on jumpers and through bulkhead adapters. The cleaning products are offered to effectively prepare fusion splicing clean connectors maximizing network performance.

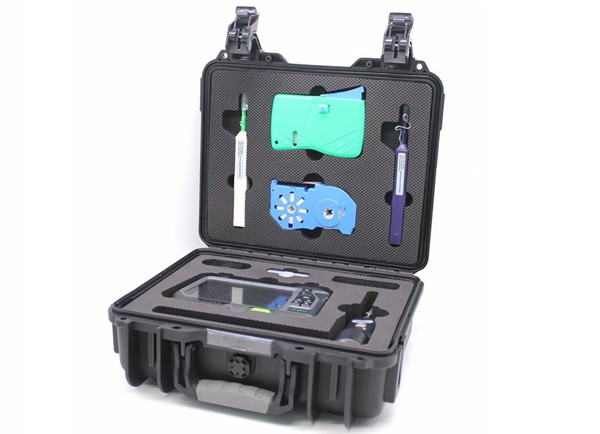

Packing Tools
-

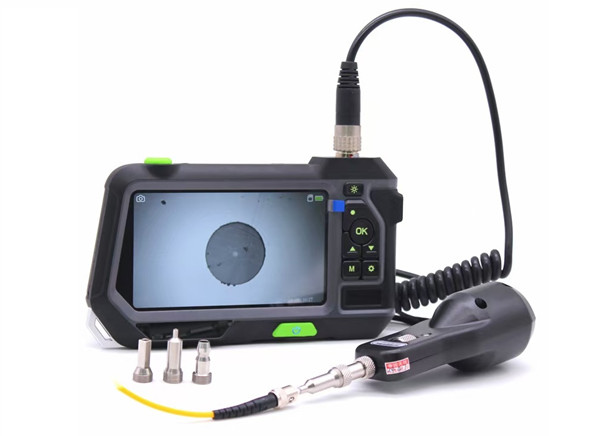

Optical Fiber Video Inspection Probe
- 3.5 LCD Monitor

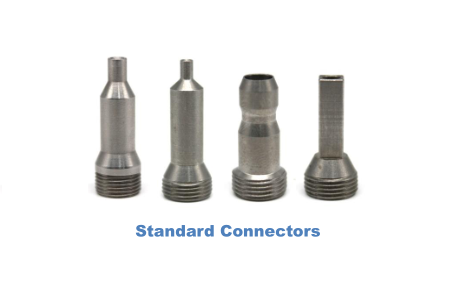

- Standard Tips : U25M U12M U25F ULCF
a) 2.5mm PC male
adaptor
b)
1.25mm PC male adaptor
c)
FC/SC/ST PC female adaptor
d)
LC/PC female adaptor 1
- 2.5mm Fiber Optic Cleaner Pen SC/FC/ST
- 1.25mm Fiber Optic Cleaner Pen LC/MU
- Optical Connector Cleaner(Neoclean-N)
- Spare Cassette
- Carrying Tool Case
Fiber Inspection Probe Specifications
|
Mainframe |
|
|
Display |
3.5 TFT-LCD, 640 x 480 pixels |
|
Dimensions |
145mm x 93mm x 45mm |
|
Weigh(including battery) |
350g |
|
Power Supply |
Replaceable battery or universal input 5V DC adapter |
|
Battery |
Rechargeable Li-Ion, 5V / 2600mAh |
|
Card |
TF card |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature |
-30°C to 60°C |
|
Inspection Probe |
|
|
Magnification |
200x (3.5 monitor) |
|
Detection Limit |
0.5μm |
|
Focus Control |
Manual, in-probe |
|
Principle |
Bright field reflected light microscopy |
|
Dimensions |
156mm |
|
Weight |
200g |

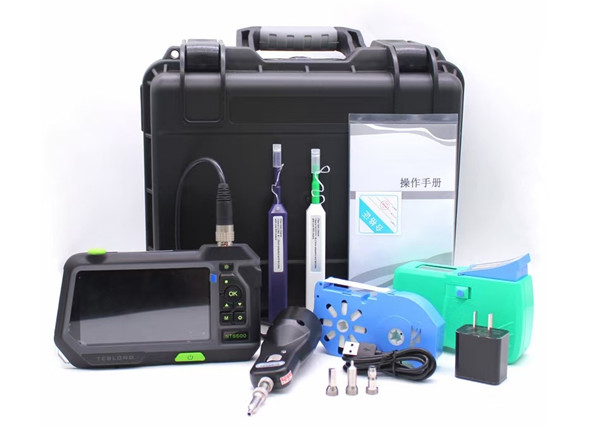

Packing List
|
Standard Accessories |
|
|
Inspection Probe |
x 1 |
|
Mainframe |
x 1 |
|
AC power adapter/battery charger |
x 1 |
|
Rechargeable battery pack |
x 1 |
|
2.5mm tip for PC male connectors |
x 1 |
|
1.25mm tip for PC male connectors |
x 1 |
|
Tip for SC / FC PC female connectors |
x 1 |
|
Tip for LC PC female connectors |
x 1 |
|
Spare cassette |
x 1 |
|
Tip box |
x 1 |
|
User Manual |
x 1 |
|
Carrying case |
x 1 |
|
Optional Accessories |
|
|
2.5mm tip for APC male connectors |
x 1 |
|
1.25mm tip for APC male connectors |
x 1 |
|
Tip for SC APC female connectors |
x 1 |
|
Tip for FC APC female connectors |
x 1 |
|
Tip for LC APC female connectors |
x 1 |
