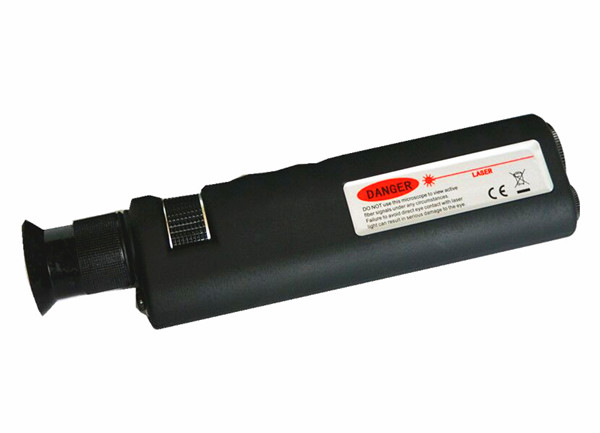

SH-FM200 400X Handheld Fiber Inspection Microscope

The fiber optic microscope utilizes a white light LED for coaxial illumination. Light is introduced into the optical path (axis) so that it comes out the tip of the objective lens and strikes the ferrule perpendicular to the end face. This method of illumination produces a high level of resolution providing excellent detail of scratches and contamination.

Specifications:

Housing Material: non-Slip Rubber

Optical Magnification: 400x

Power source: 3 x AAA Alkaline batteries (not included)

Light Source: White LED rated life: 100000 hours

Controls:

Momentary on/off switch

Fine Focus control wheel

Safety Filter: Built-in IR filter

Adapter Interface: Uses interchangeable presented universal or dedicated adapters

Adapter: Universal Adapter (2.5mm) Compatible with ST FC SC E2000 and 2.5mm DIN

Weight: 600g

Size: 225 L x 32mm

Package:

1 * 400x CL series Fiber Scope

1 * 1.5mm Adaptor

1 * 2.5mm Adaptor

1 * Soft Carrying Case

1 *User Manual
