Model:：SH-LKS100
Overview
Reliability and performance of a fiber optic link largely depends on the quality of interconnects. Contaminated connectors can cause the mating surfaces to separate leading to high insertion loss and back-reflection. Furthermore, some dirt particles can even scratch or dig into the glass causing permanent damage to the end-face of the connector. Therefore, inspection of fiber optic connectors should be performed whenever a connection is to be made.

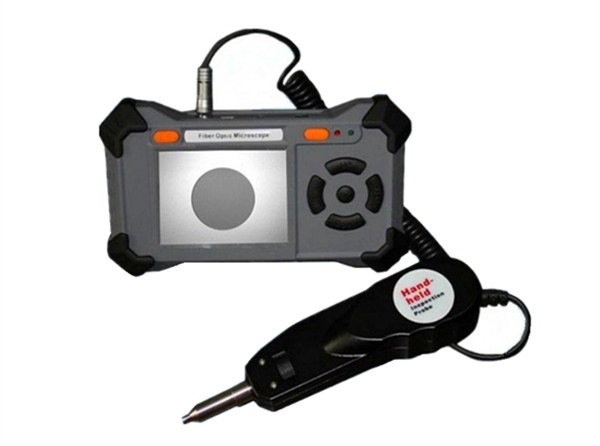

The Fiber Optic Connector Inspection is an intelligent handheld video microscope suitable for inspection of patch cords, bulkhead receptacles and a variety of connectors found in fiber optic com-munication systems.
Features
3.5-inch TFT color display
Well-centered, high resolution image
Image capture and storage
Instant video recording
250x Magnification
4x Digital zoom
Standard tips (SC, FC, ST, LC, MU, E2000)
USB plug-and-play optional
|
Mainfr |
|
|
Display |
3.5 TFT-LCD 320 x 240 pixels |
|
Dimensions |
170mm x 100mm x 40mm |
|
Weigh(including battery) |
200g |
|
Power Supply |
Replaceable battery or universal input 5V DC adapter |
|
Battery |
Rechargeable Li-Ion 3.7V / 1450mAh |
|
Battery life |
> 3 hours (continuous) |
|
Charger/AC adapter |
US EU UK and Australian versions available |
|
Image / Video Storage |
8GB SD card |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature |
-30°C to 70°C |
|
Inspection Probe |
|
|
Magnification |
400X (9 monitor); 250x (3.5 monitor) |
|
Detection Limit |
0.5μm |
|
Focus Control |
Manual in-probe |
|
Principle |
Bright field reflected light microscopy |
|
Dimensions |
180mm x 40mm x 30mm |
|
Weight |
200g |
