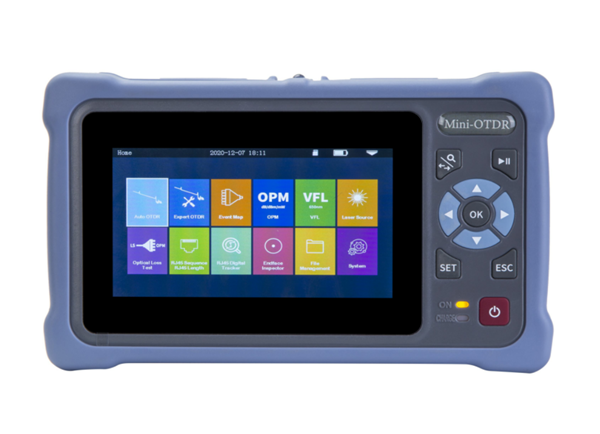

Model:：TR1200
1. 4.3-inch multi-touch capacitive screen support zoom function screenshot
2. Intelligent multi-function 12-in-one functional module: automatic OTDR expert OTDR event map optical power meter visible fault locator adjustable light source optical loss test RJ45 sequence test RJ45 length test RJ45 digital tracker flashlight end face detection (optional)
3. Automatic OTDR no complicated settings one-key test
4. Expert OTDR professional measurement mode simultaneous display of curve list and MAP view
5. Event blind zone 2.5m attenuation blind zone 8m measuring range up to 100KM
6. Support optical test with optical signal less than -5dBM high isolation bilateral filter technology
7. Support automatic saving SOR file format 8G storage capacity 200000 records can be stored
8. Support Type-C charging interface 4000mAh polymer battery battery life is more than 12 hours
Technical Specifications
|
Model |
TR1200S |
TR1200D |
TR1200F(Live Test) |
|
Wavelength |
1550nm±20nm |
1310nm/1550nm±20nm |
1310nm±20nm |
|
Type |
G.652 SM |
||
|
Dynamic Range |
24dB |
26dB/24dB |
26DB |
|
Event Blind Zone |
2.5m |
||
|
ATT Blind Zone |
8m |
||
|
Test Range |
500m 1km 2km 4km 8km 16km 32km 64km 100km |
||
|
Pulse Width |
3ns~20us |
||
|
Ranging Accuracy |
±(1m+Sampling interval+0.005％×Test distance) |
||
|
Linearity |
±0.05dB/dB |
||
|
Sample Points |
16k~128k |
||
|
Sample Resolution |
0.05m~8m |
||
|
Reflection Accuracy |
±3dB |
||
|
Data Storage |
8G |
||
|
Laser Safety Level |
Class Ⅱ |
||
|
File Format |
SOR Standard file format |
||
|
Connector |
FC/UPC(Interchangeable SC ST) |
||
|
Optical Power Meter |
|||
|
Wave Range |
800nm~1700nm |
||
|
Interface Type |
Universal connector FC/SC/ST |
||
|
Test Range |
-70dBm～+6dBm or -50dBm～+26dBm |
||
|
Uncertainty |
±5% |
||
|
Frequency Identification |
CW/270/330/1k/2kHz |
||
|
Calibration wavelength |
850/980/1300/1310/1490/1550/1625/1650nm |
||
|
Optical Light Source |
|||
|
LD Type |
FP-LD |
||
|
Wavelength |
1550nm±20nm |
1310nm/1550nm±20nm |
1310nm±20nm |
|
Output Power(adjustable) |
(-2dBm±～-10dBm)±2dB |
||
|
Modulation Frequency |
270/330/1k/2k/Hz |
||
|
Stability |
CW，±0.2dB/15min(Test after 15 minutes of preheating) |
||
|
Connector |
FC/UPC(Interchangeable SC ST) |
||
|
Visual Fault Locator(VFL) |
|||
|
Wavelength |
650nm±20nm |
||
|
Output Power |
≥10mW |
||
|
Mode |
CW/1Hz/2Hz |
||
|
Connector |
Universal connector FC/SC/ST |
||
|
RJ45 Cable Length Measurement |
|||
|
Test Range |
0~300m |
||
|
General Specifications |
|||
|
Display |
Touch Screen 4.3 Inches 800*480 IPS TFT-LCD Multi-touch capacitive |
||
|
Data Interface |
Type-C |
||
|
External Storage |
TF card |
||
|
Power Supply |
Polymer Li-Battery: 3.7V 4000mAh Adapter: 5V DC 2A |
||
|
Battery Working |
Standby＞20h; Measuring time＞12h |
||
|
Operating Temperature |
-10℃～+55℃ |
||
|
Storage Temperature |
-40℃～+80℃ |
||
|
Relative Humidity |
0～95％Non Condensing |
||
|
Weight |
≤500g |
||
|
Size |
173mm×109mm×45mm |
||
Configuration List
|
NO. |
NAME |
QUANTITY |
Remarks |
|
1 |
Host |
1 |
Battery included |
|
2 |
Adapter |
1 |
|
|
3 |
Data Line |
1 |
|
|
4 |
CD-ROM(Analysis software/User’s Manual) |
1 |
|
|
5 |
User’s Manual |
1 |
|
|
6 |
FC/UPC |
1 |
|
|
7 |
SC/UPC |
1 |
|
|
8 |
Qualification Certificate/ Service Guarantee Card |
1 |
|
|
9 |
Calibration Certificate |
1 |
|
|
10 |
Clean Cotton Slices |
10 |
|
|
11 |
Instrument Backpack |
1 |
|
|
12 |
RJ45 Wire Tracker |
1 |
|
