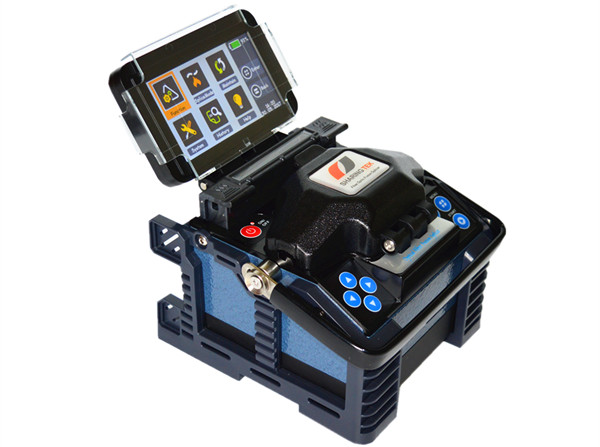

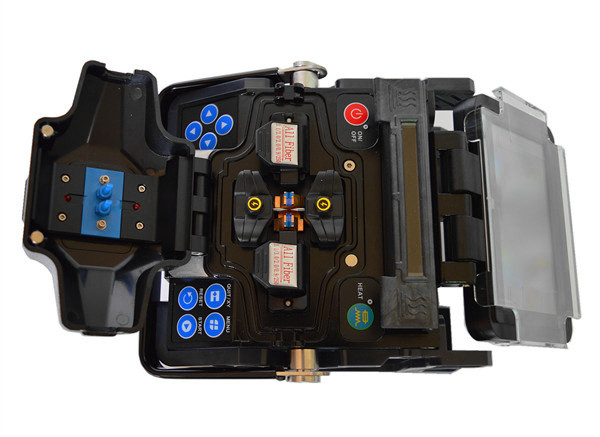

SH-FS170H Core Alignment Fiber Fusion Splicer

Model:：SH-FS170H

●It adopts German technology with core alignment system and independent property rights.
●The equipment takes advanced PAS technology not only can be used to FTTX also meet the requirements of trunk line with good properties of mini size four motor drive light weight fast speed.
Features
●Hardness
The body is made from titanium alloy and it has rubber protection function quakeproof waterproof dustproof .
●Fast
7s fast splicing 15s fast heating support continuous heating average efficiency improve 2-3times.
●Long lifetime
200 fiber splicing no memory effect lithium batteries the fiber cleaver has 24 blade longer lifetime.
●Maintenance

Convenient

Item	Fusion Splicer Machine
Applicable Fiber Type	SM MM DS NZDS
Applicable Fiber Count	Single
Applicable Fiber Diameter	Cladding diameter of 125um coating diameter 250 ~900um
Splice Mode	Stored 40 groups 80 groups of user-defined
Average Splice Loss	0.01dB(SM)0.005dB(MM)0.04dB(DS)0.04dB(NZDS)
Return Loss	More than 60dB
Connecting Time	9 sec(Typical time)
Splice Loss Evaluation	It has
Tensile Test	2N
Screen	4.3 in. color LCD English Chinese French Spanish PortugueseRussian etc.
Optical Magnification	X / Y: 180 times X or Y: 350 times
Power Supply	11.1V lithium battery 13.5V/5A power adapter 12V vehicle power supply
Battery	Typical Operating 220 (splice / heat shrink / thermal stripping) on a single charge 3h can be reused 500 times
Maximum Storage	10000 set of the latest record storage
Data Interface	USB2.0
Operating Environment	Altitude 0 ~ 4000m 0 to 95% relative humidity temperature -10 ~ 55degree the maximum wind speed 15m/s
Storage Conditions	0 to 95% relative humidity -40 ~ 80°C (except battery) -10 ~ 30°C (battery)
Weight	1.54kg (without battery) 1.82kg (including battery)
Corrosion Resistance	Device components spare parts and materials used meet corrosion requirements fluid contamination from erosion
Size	150D130W126H(mm)
Packing	New waterproof drop more than can be heavy 300KG

Main Unit	1pc
Fiber Cleaver	1pc
Insulated Fiber Stripper	1pc
Miller Stripper	1pc
Spare Electrodes	1 pair
Cooler	1pc
Tweezers	1pc
Alcohol Bottle	1pc
Fiber Holders	Universal Fiber Holders (0.25mm 0.9mm2.0mm 3.0mm 3.1mm)
Carrying Suitcase	1pc
AC Adaptor	1pc
Blower(dustproof)	1pc
Specifications	1pc
