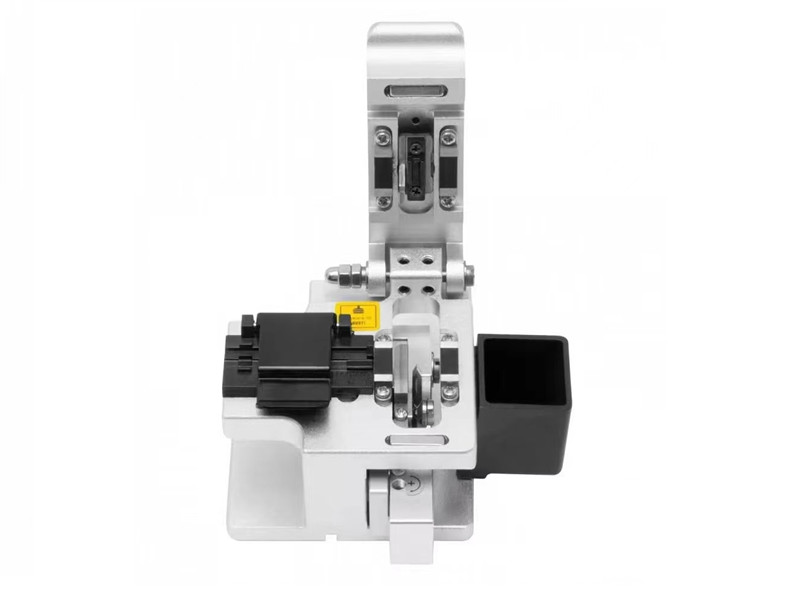

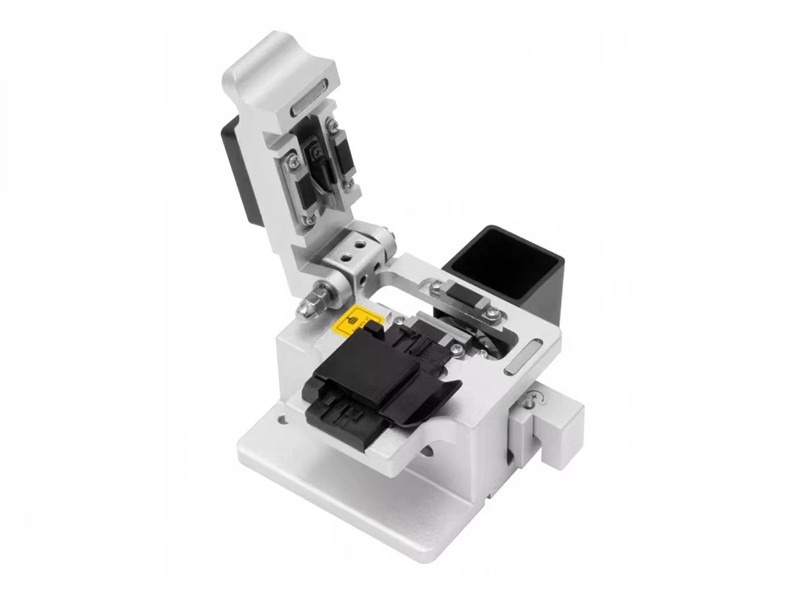

SH-50S Silver High Precision Fiber Optic Cleaver with Collector

SH-50S Silver High Precision Fiber Optic Cleaver with Collector

Model::SH-50S

Features

·           Precise cleaved surfaces;

·           Smooth cleaving angle around 0.5 degree

·           Blade lifetime up to 2000 times each point, 24 cutting point, blade life time up to 48000times;

·           Automatic return of blade

·           convenient design, easy to use;

·           Smart design of pressure pads preventing the fiber from damage by the return of blade carriage;

·           Easy operation to complete the cleaving and collection of waste fiber shards.

·           Main Body is made of aluminum material; Blade is magnesium alloy materials

Specifications

Application

Silicon optical fiber

Fiber diameter

125um

Coating Diameter

0.25 & 0.9mm

Cleaved length

9~16mm(ø0.25), 10~16mm(ø0.9)

Cutting angle

≤0.5°

Blade cutting life

48000 times

Fiber blade

24 blades

Mode

Semiautomatic

Size/weight

63*56*56 (mm) /280g
