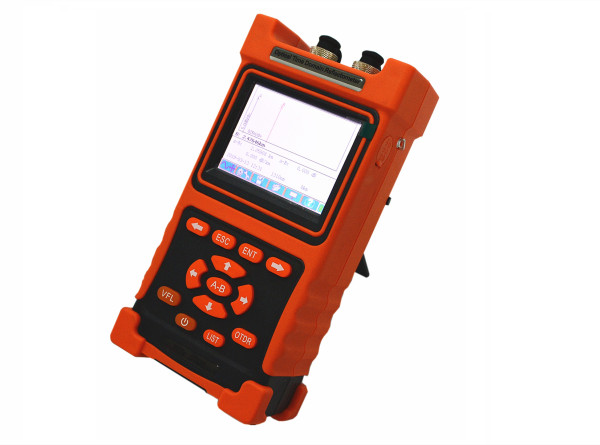

TR200 Handled Touch-screen OTDR 1310/1550nm

Model:：

Descriptions

Hand-held Optical Time Domain Reflectometer series is a newly hand-held and intelligent communication measuring device in accordance with the test of Optical fiber and Communication System. The product is used to measure the parameters like optical fibers, length of the optical fiber, loss, following quality and the like. It can quickly and accurately position the case point and fault point of the optical fiber link. It can be widely used in the engineering construction, route maintenance and urgent repair of the Optical fiber and Communication System. It can also be used in optical fiber and optical cable development as well as production measurement. The product can effectively do help to the installation and construction of the optical fiber network, the following speedy and effective maintenance and the troubleshooting test.

OTDR is sturdy and durable with a novel and attractive appearance. The most succinct operation interface with a simple and intuitive style is specially designed for the domestic users. The dual operation mode of press key and touch screen effectively simplifies the application of the users. You can obtain the test result by the one-click analysis and the events will appear on the main interface in a list form with the information of event number, type, location (distance), loss, reflex, gradient of the events (attenuation) and total loss. Intelligent power management mode is employed to the machine. The working duration of the machine can be more than 10 hours with the high-capacity lithium battery.

Main Features
Ø The novel and beautiful structural design of the appearance.
Ø The most convenient operation mode in the industry is as simple as available.
Ø Ultra-short event dead zone can test the wire jumper of the optical fiber.
Ø It can test the circuit with light and give an alarm, avoiding existence of the equipment whose signal light is damaged in the optical fiber tested.
Ø High-power visible laser fault location function is equipped inside.
Ø USB interface can transfer the documents and make the report forms fast.
Ø Universal light output interface which is easy to be replaced enables a variety of interface tests.
Ø The working duration of more than 8 hours enables long-time field construction.
Ø Multiple choices of wavelengths and dynamic ranges best meet the requirement of the users.

Ø Highly intelligent analytical software can accurately recognize the melting point of the fault. The junctor may bend.

Technical Specification

Item	OTDR
Optical fiber type	Single-mode
Central wavelength（nm）	1310/1550
Maximum dynamic range(dB)	28/26
Event dead zone（m）	2
Attenuation dead zone（m）	10
Display screen type	3.5 inch color LCD operation of the touch screen
Optical interface	FC/UPC (can be interchanged to SC or ST)
Test range （km）	70km~80km
Pulse width（ns）	10、30、50、100、275、500、1000、5000、10000
Ranging accuracy（m）	± (1m+ sample interval +0.005%×distance)
Attenuation measurement （dB/dB）	±0.05
Reflection measurement （dB）	±5
Data storage	≥800 testing curves
Communication interface	USB
Visible red light source(VFL)
Output power	≥2mW
Testing distance	≥5km
Environmental adaptability
Power supply mode	AC/DC adapter: alternating current:100V~240V (1.8A) 50/60Hz direct current: 19V±1V（2A） Internal lithium ion battery groups: 8.4V，5200mAh
Working duration of the battery	≥8hours
Working temperature	-5℃~50℃
Preserve temperature	-20℃~70℃
Weight	≤1kg
Volume	208mm×110mm×56mm

Standard Configuration

Number	Name	Quantity
1	OTDR	1
2	Power line	1
3	AC/DC power adapter	1
4	Product qualification certificate	1
5	User manual	1
6	Disk (including simulation analysis software)	1
7	Special bag for the instruments	1

Note: The standard configuration of OTDR interface type is FC/UPC.
