Model:：SH-M100
Overview

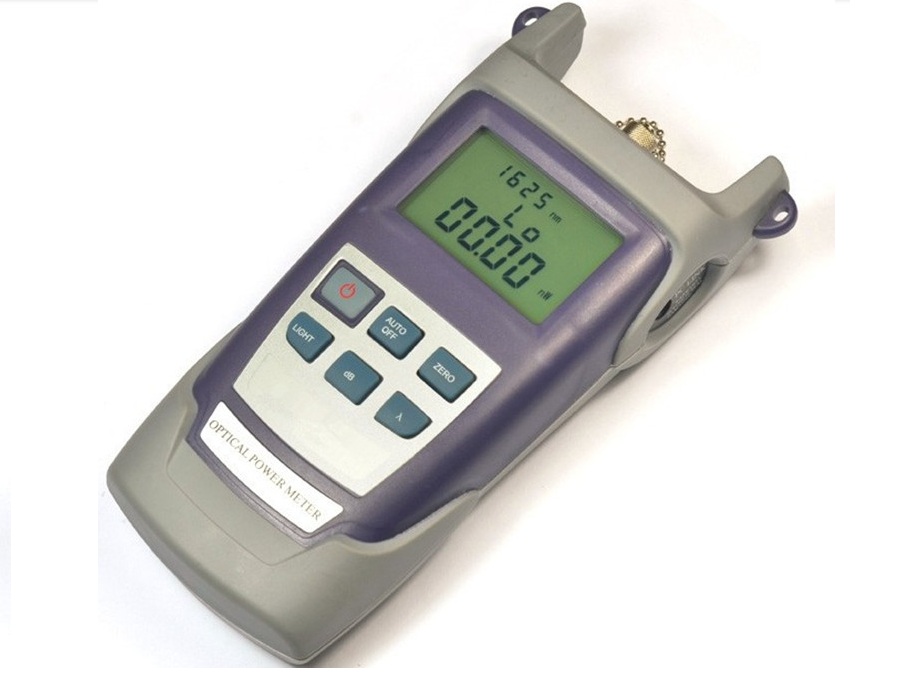

SH-M100A Handheld Optical Power Meter is a newly designed fiber optic tester, which aims at the installation, engineering acceptance and maintenance of fiber network.
Compared with other usual power meters, the SH-M100A has more functions, like automatic wavelength identification, auto wavelength switching, intelligent backlight.
Combined with SH-S125 handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers.
Features
●Compared with other usual power meters the SH-M100A has more functions like automatic wavelength identification auto wavelength switching intelligent backlight.
●Combined with SH-S125 handheld optical light source it offers a quick and accurate testing solution on both SM and MM fibers.
Features
●Wave ID Auto wavelength identification & switching
●Frequency ID ---Auto frequency identification
●2 types of backlight modes manual or outside light intensity which indicated by LED light red or blue color.
●Intelligent backlight
|
Model |
SH-M100A |
SH-M100B |
|
Calibration Wavelength(nm) |
800~1700 |
|
|
Detector type |
InGaAs |
|
|
Measurement Range(dBm) |
-70+10 |
-50+26 |
|
Uncertainty (dB) |
+0.2(5%) |
|
|
linearity (dB) |
0.01 |
|
|
Display resolution(dB) |
0.03 |
|
|
Frequency ID Hz |
270 330 1K 2K |
|
|
Wave ID nm |
85098013001310149015501625 |
|
|

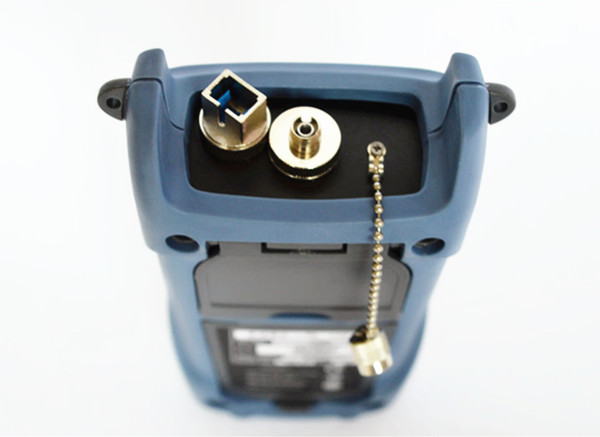

Connector |
FC/SC/ST Interchangeable |
|
|
Alkaline battery |
3AAA 1.5V or Li battery (9V) |
|
|
Power Adapter(V) |
8.4 |
|
|
Battery Operating time (h) |
240 without backlight |
|
|
Operation Temperature(oC) |
-10(oC) +60 |
|
|
Storage Temperature(oC) |
-25(oC)+70 |
|
|
Dimension(mm) |
172*82*33 |
|
|
Weight(g) |
310 |
|
package: SH-M100 Optical Power Meter 3pcs 1.5V Batteries Power Adapter User Manual USB cable CD Cotton Stick and Soft Carrying Case.
